K0 - Morse Code

Sanborn’s description (from Elonka’s website):

…the first of three elements of this work. We see a large “natural” stone outcropping running parallel to the facade, through which the main walkway passes. This outcropping is composed of 12” - thick slabs of granite. Between two of these layers is a “seam” in geological terms of green copper plate. The top of this plate which is exposed in several places is perforated with International Morse code, the simplest of all codes. This text can be deciphered easily by those familiar with Morse.

To decode Morse code, you are welcome to try out my tool.

Morse code prosigns are shown with a bar above, like SOS. When you send a prosign, you omit the pause between the letters, which is normally the same amount of time as three dits.

When I saw the larger gaps that appear between words, I flagged them in the transcribed messages as a / below. When transmitting Morse code, these pauses should be the same amount of time as seven dits.

I once saw a reference that said the repeated E code (.) was a way that an operator would pause a message without relinquishing control. Unfortunately, I have lost that website and can’t seem to find another that would support this conclusion. Others believe these characters could be crucial for decoding K5.

These messages are read from the rock to the edge as “forward” because the other direction is consistently unintelligible. Some of the pictures referenced will show the Morse code backwards. One of the messages is cut backwards and feeds into the rock, and that one is called out in the analysis.

There are a couple places where the Morse code could be interpreted as having an error. When asked about K1 and K2, Sanborn has said some errors are intentional, so perhaps there are intentional errors in this portion as well.

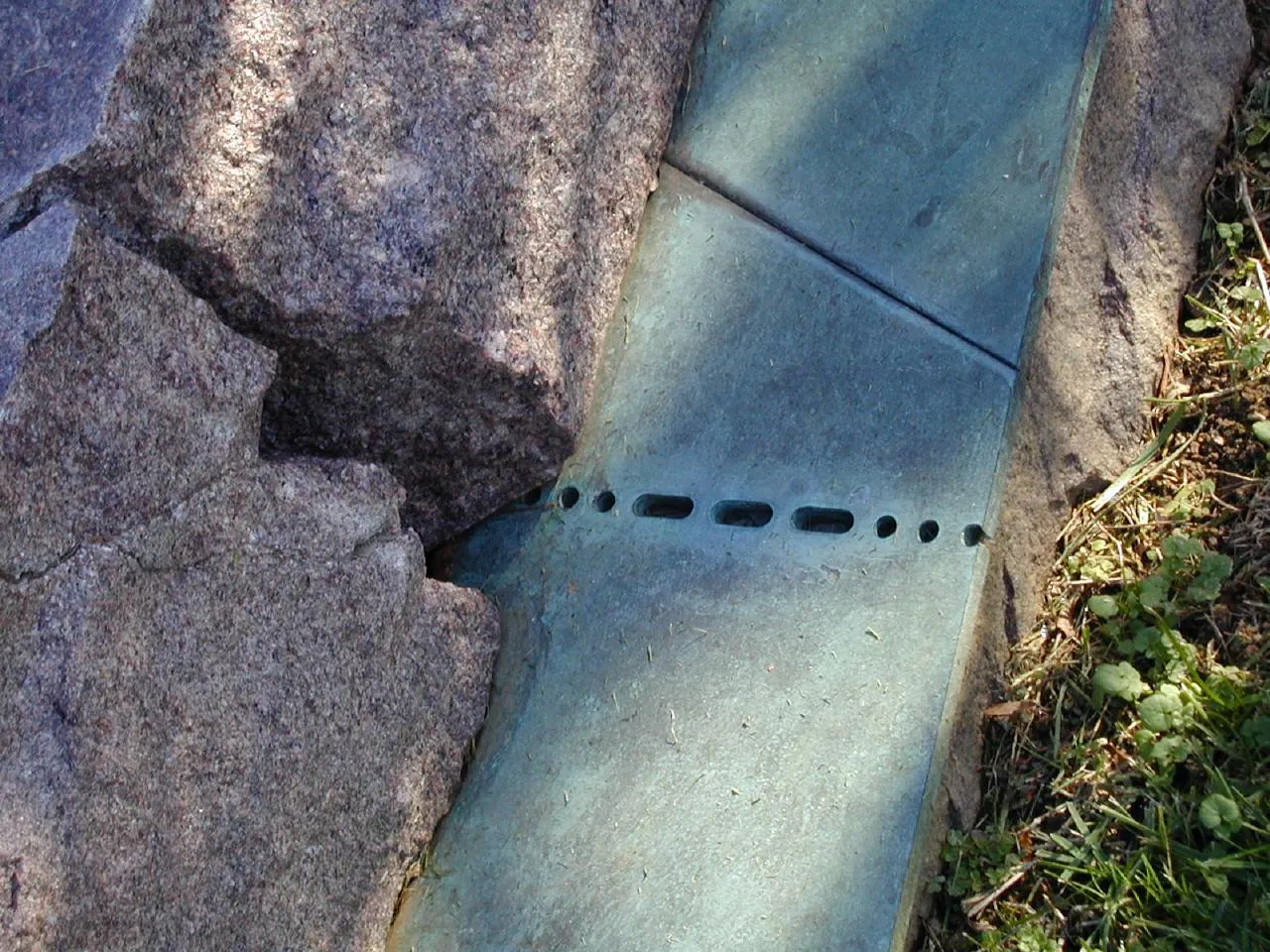

SOS

One line of Morse code. Some sources online don’t see the dot on the left, barely peeking out underneath the stone. ... is S and --- is O. Lots of people put spaces between the letters, making ... --- ..., but that is incorrect. The SOS prosign is sent without larger gaps between the letters.

Other direction

This is a palindrome, so there’s no alternate backwards interpretation of these letters.

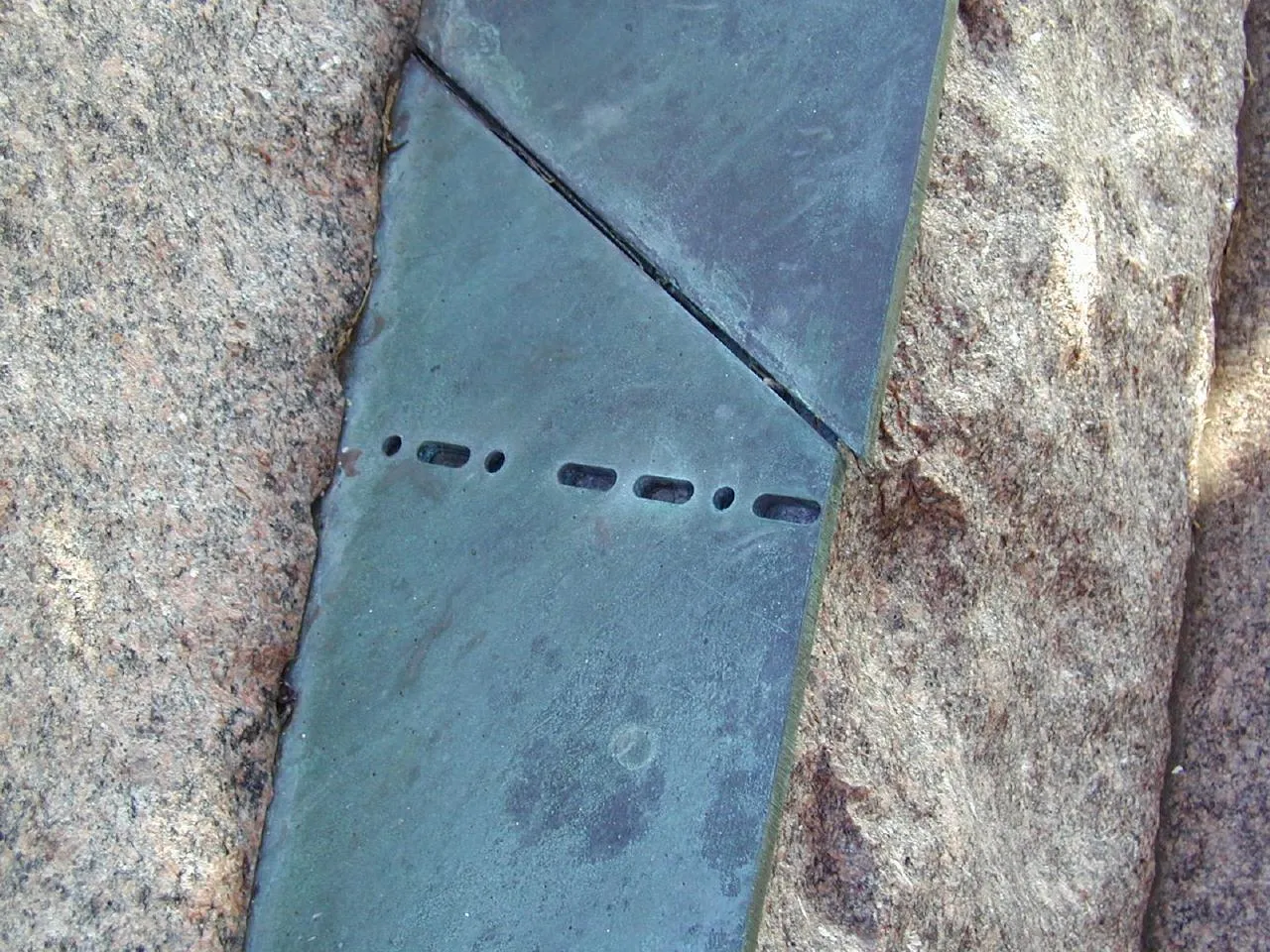

RQ / YR

When read left to right, this produces RQ. The code .-. could also be shorthand for the prosign ROGER. The code for Q at the end is right at the edge, so it could also be a partial code for Ĝ (--.-.) or Ñ (--.--), though I think that is unlikely.

An interesting bit about RQ comes from A Guide to Morse Code Proficiency, though I don’t know if Sanborn would have researched transmission of Morse code this thoroughly.

If the transmitter is slow to start transmitting e.g. a slow mechanical transmit-receive changeover relay), the first mark is truncated and may even be completely lost, changing the meaning of the first character. A callsign such as EA4ABC may become A4ABC, for instance, or a “CQ” call may start with “FQ” or “RQ”.

For reference, CQ is a prosign but the space between the letters is preserved (though some sources disagree). Think of it as a shortcut that means “I would like to make a contact; does anybody hear me?” The code for C is -.-. and the code for R is .-., but the pictures show plenty of space before the R, indicating that the correct message is likely RQ or it’s an error in transcription.

Other direction

When read in the other direction, this produces YR. Again, the code for Y could be cut off and Ñ (--.--) could be the first letter.

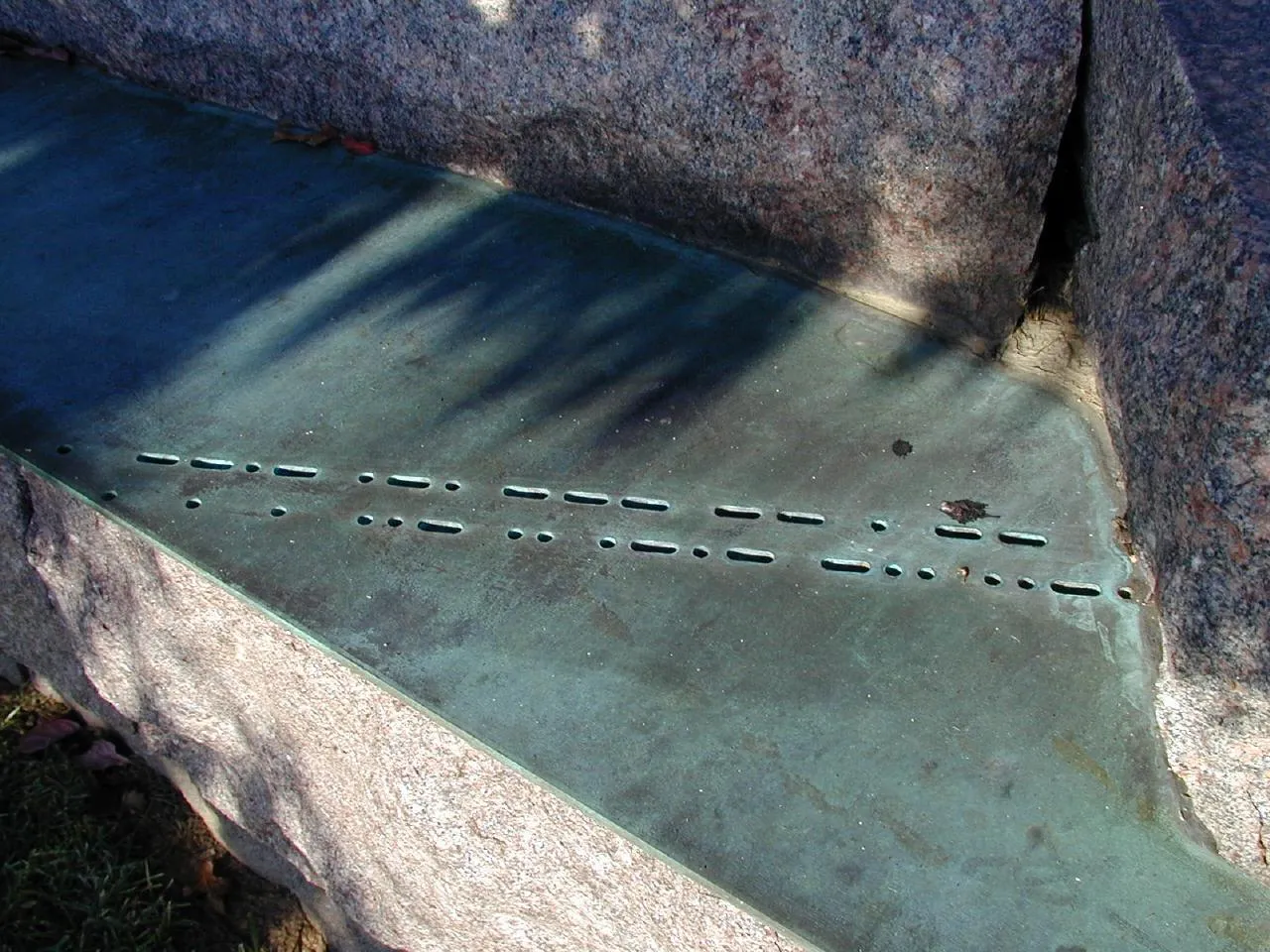

LUCID MEMORY

The first line reads LUCID E E E. The code for L is extremely close to the rock, so it could be Ć, Ĉ, or Ç (all have the code -.-..); or maybe Đ, É, or Ę (all have the code ..-..).

The second line reads MEMORY E. The gap to the beginning of M is clearly present, so no alternate interpretations are available.

Other direction

If reading the lines from the other direction, MEMORY E becomes E QROMEM.

Reading the other line backwards produces E E E UIÄDF. Instead of Ä, the code .-.- could mean Æ or Ą, or it could be shorthand for either “new line” or “unknown station”. The F at the end could instead be Đ, É, or Ę (all have the code ..-..); or the prosign INT (code ..-.-), which means “interrogative” and is a military replacement for a question mark.

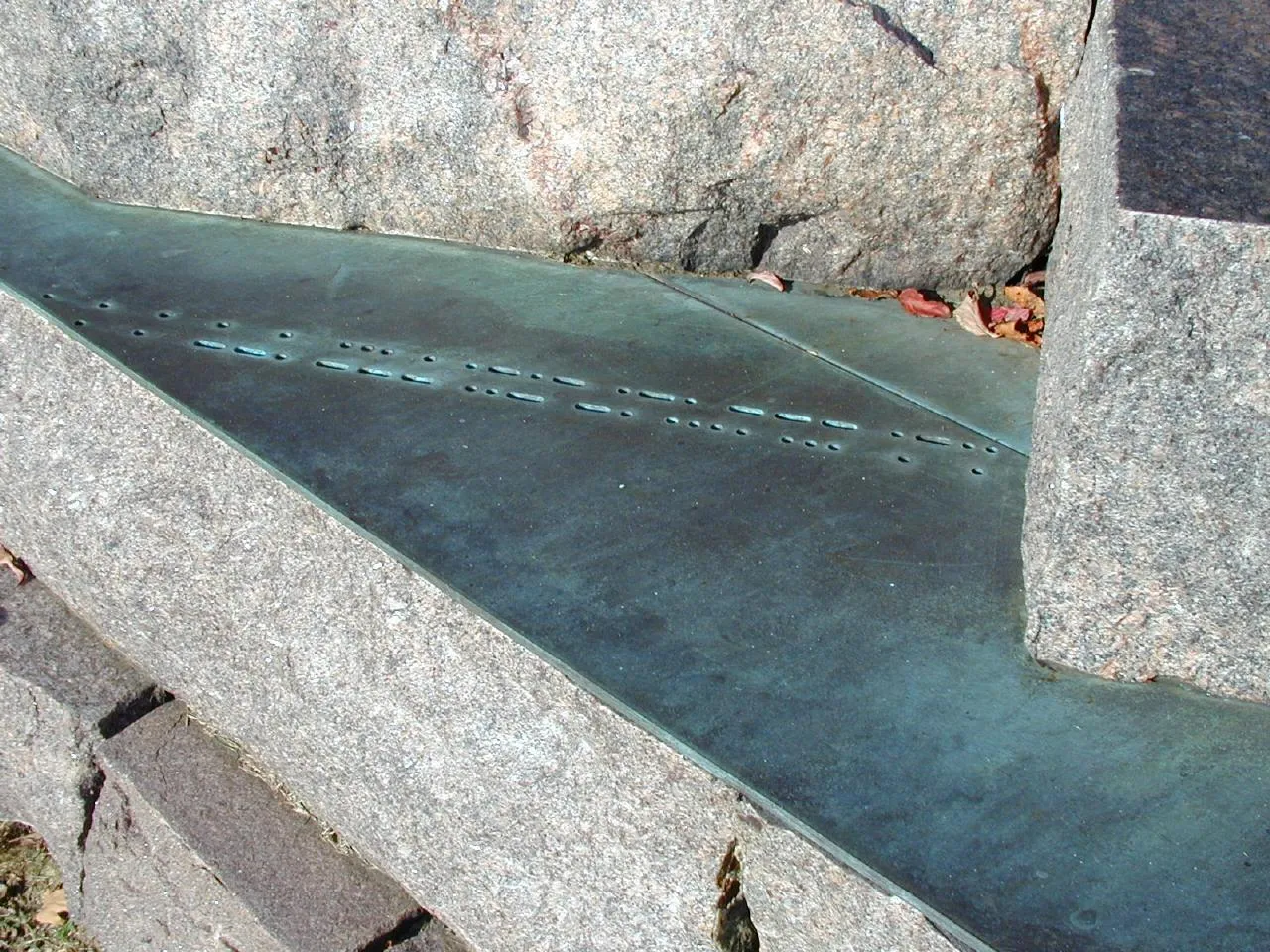

SHADOW FORCES

The first line is E E SHADOW E E.

The second line is FORCES E E E E E.

Other direction

When read from the other side, FORCES E E E E E would translate into E E E E E SEÄROL. Instead of Ä, the code .-.- could mean Æ or Ą, or it could be shorthand for either “new line” or “unknown station”.

The second line would change from E E SHADOW E E to E E GOUNHS E E.

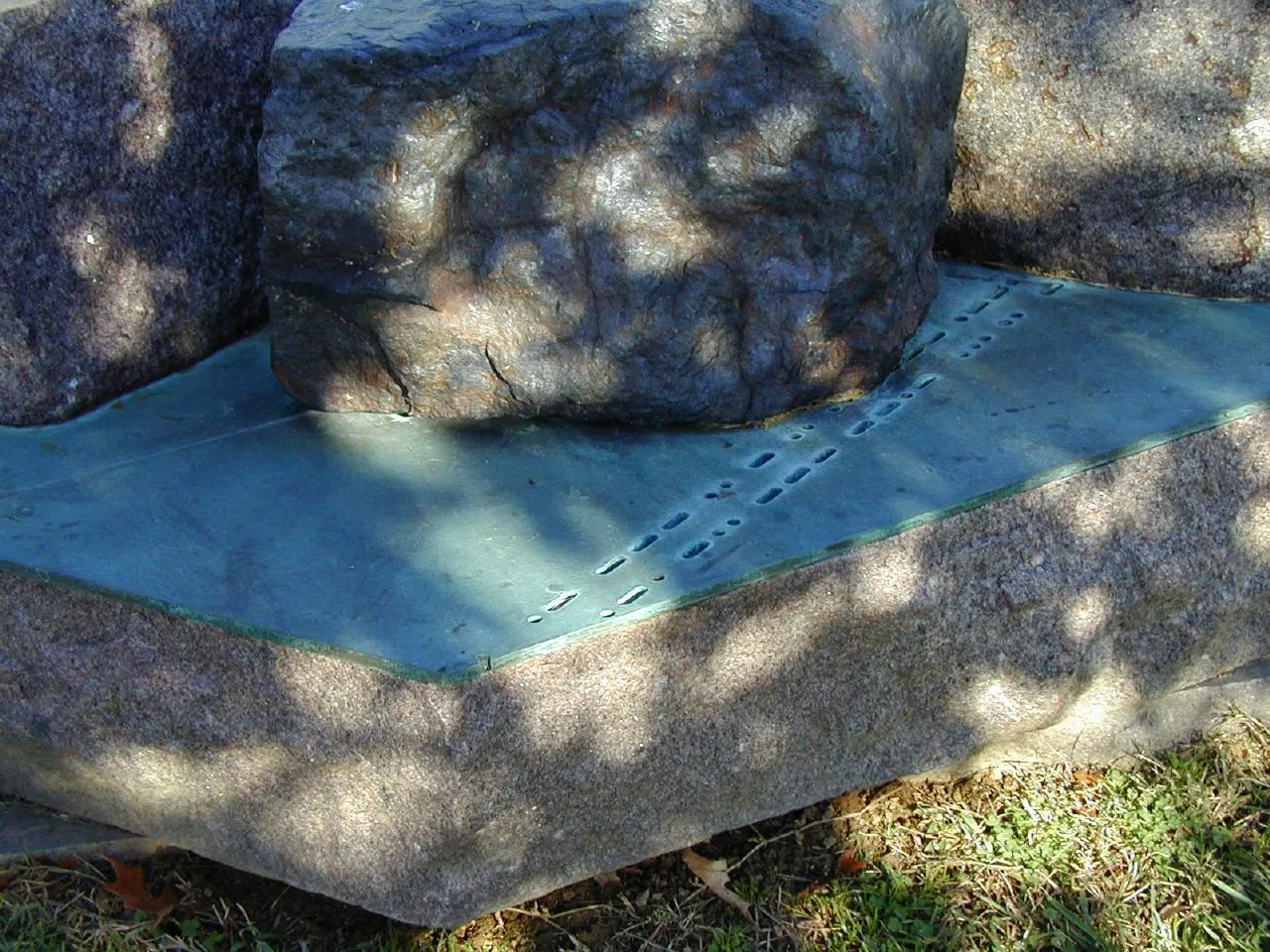

WHAT IS YOUR POSITION

The first line appears to say T IS YOUR. The T at the beginning might just be the end of a code. People naturally leap to the whole word WHAT, though it could just as easily be a K, as in BACK IS YOUR. When taken with the second line, it’s hard to dispute that WHAT IS YOUR is correct.

The second line looks like POSITION. The last dah in O and the first dit in S are obscured by rock, though the spacing is right for these letters. The beginning P may be ( or an invitation to transmit (code -.--.); or Ð (code ..--.). Also, the E at the end is trimmed, so it’s often overlooked.

Other direction

If read from the other side, we start with E AOITISOP, but with the same caveat that a dit and a dah are covered by rock. The final P could be @ or the prosign AE (code .--.-.), À or Å (code .--.-), or Þ (code .--..).

The next line is RWOQ T, again with the note that T could be just the beginning of a code.

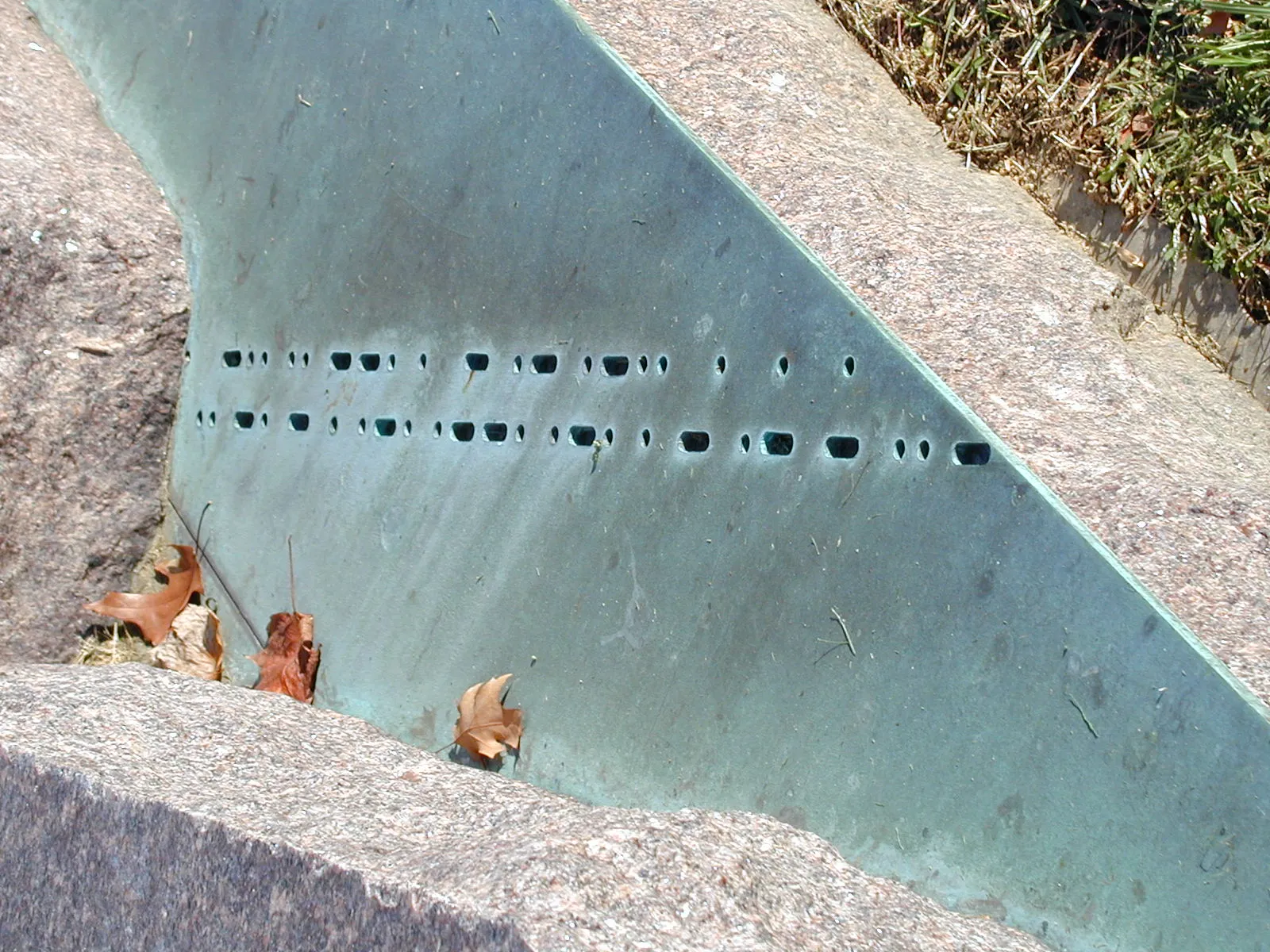

DIGITAL INTERPRETATION

The first line literally reads E DIGE TAL E E E. The extra space after the E in DIGE, when taken literally, indicates that this is the end of a letter. However, it has enough of a gap to nicely put in another dit, which would make the message E DIGITAL E E E. Is this error intentional?

The second line says INTERPRETATI and is cut off. It looks like just enough metal is left after the final I to indicate that there’s a gap as opposed to another code that starts with a dah, such as N (code -.).

Other direction

If read from the other side, the top line would read TITNTERPRETAI. It’s curious how closely this matches the other direction.

The second line would be E E E FNT EWIU E. If we add the dit that is assumed to be missing, we get E E E FNTIWIU E.

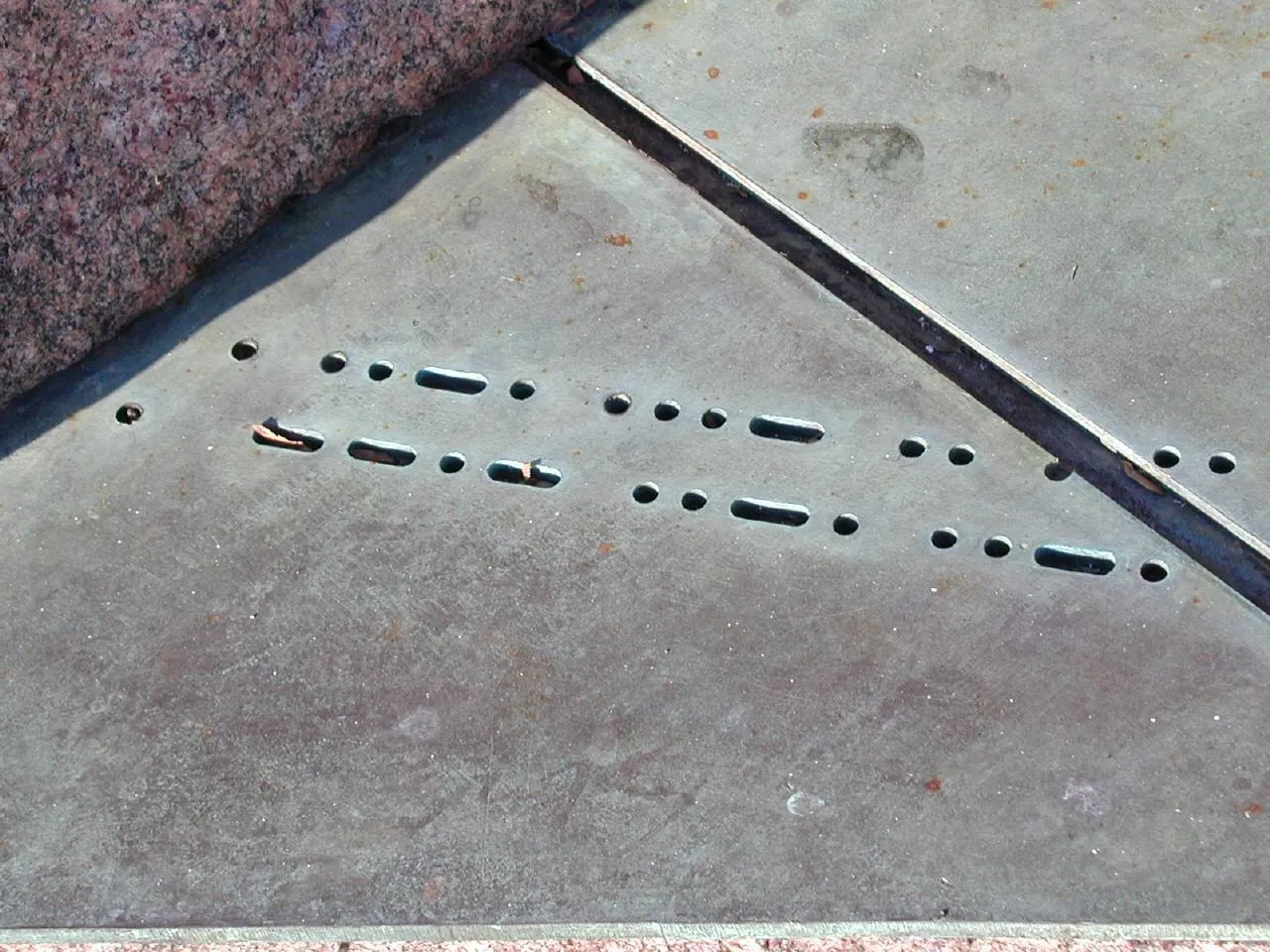

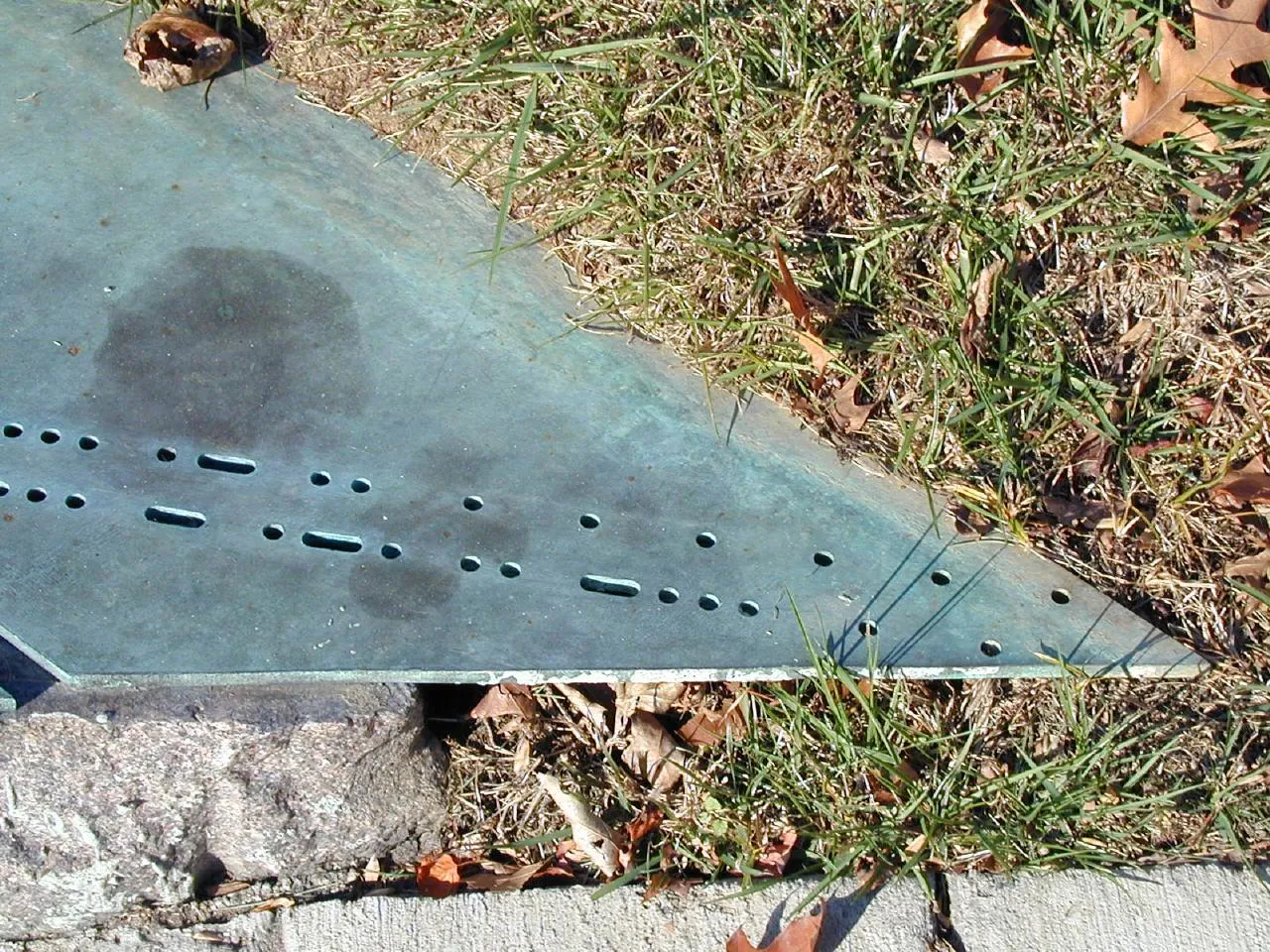

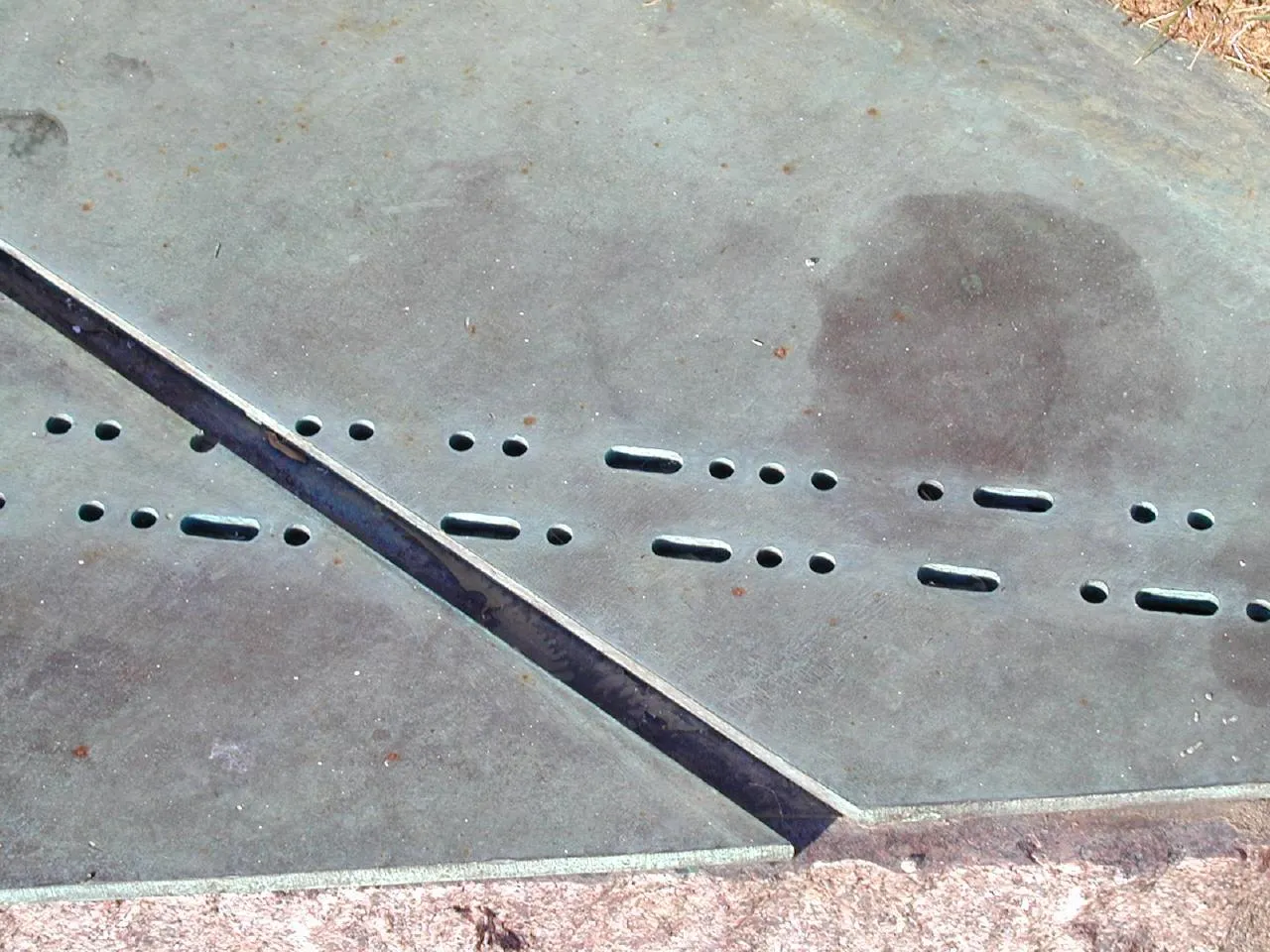

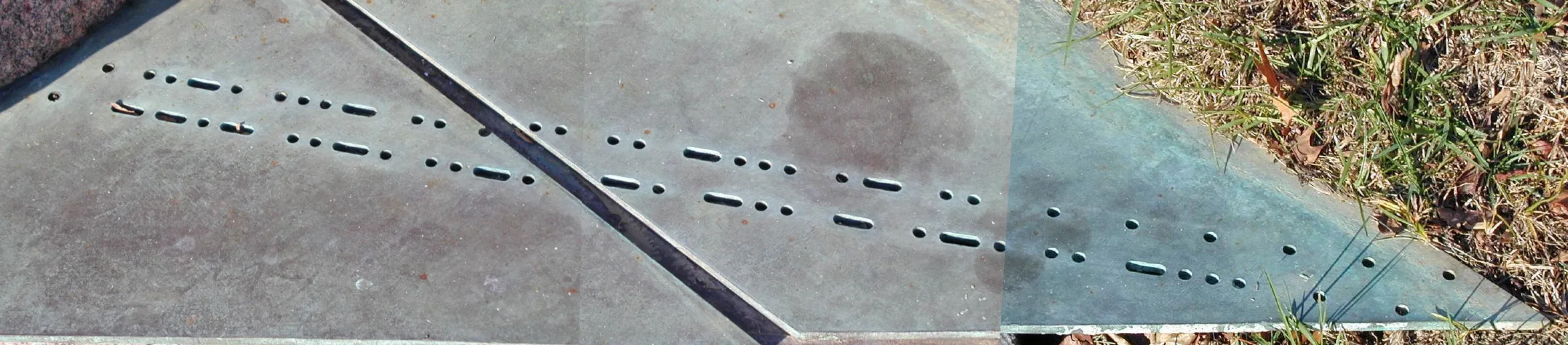

VIRTUALLY INVISIBLE

This cipher message is cut into two plates and is the only one that reads towards the rock. The rest are read away from the rock and do not span any gaps. This cipher transcription uses a vertical bar to show where the gaps are in the Morse code, but it reads nicely when you join the plates together as though the gap isn’t there.

The first line is E E VIRTUALLYE. The gap is between the A and L. The extra E at the end doesn’t have a larger inter-word gap, so it should be considered part of VIRTUALLY or else it is a transcription error.

The second line is E E E E E INVISIBLE, where the letter S spans the gap.

Other direction

The first line reads EFVIE|IIBAI E E E E E if you stop at the gap, or EFVISIBAI E E E E E if you join the letters across the gap.

The second line is EQFF|NDTRID E E, where the gap doesn’t appear to interfere with the codes.
